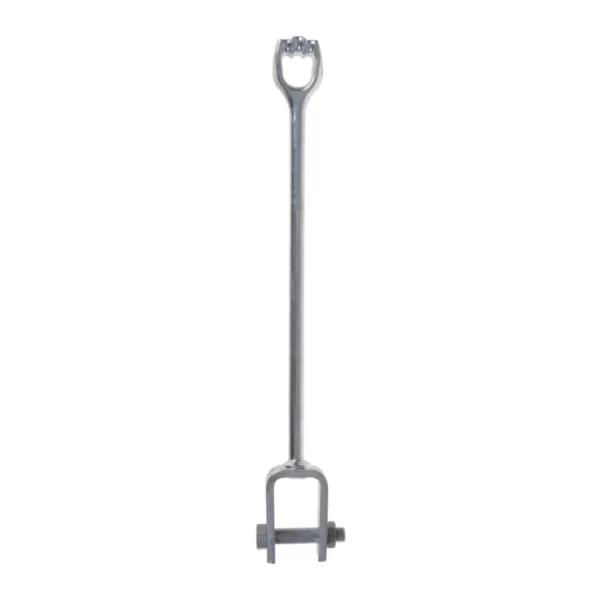

Rod, Anchor Extension, 1in X 2ft Tripleye

Expanding/Cross-Plate Anchor Rod Extension 1″ (25.4 mm) Diameter Rod, 2′ (609 mm) long with Tripleye and with 7/8″ (22.2 mm) clevis bolt.
These anchor rod extensions primarily are for making above-grade connections between installed anchors and guy wires. Each extension rod has a clevis on one end and a forged eye on the other end. The eye is designed to distribute pulling stresses uniformly over individual strands of guy wire and keep the guy wire from spreading, kinking, or bending. The drop-forged eye of each extension rod is stronger than the rod itself. Each extension rod is hot dip galvanized and includes a high-strength clevis bolt and nut.

The clevis bolt of the anchor rod extension attaches to the eye of anchor to move the guy deadend above ground level
Each rod includes high-strength bolt and nut
Hot dipped galvanized per ASTM A153

Add to wishlist
Category:

Description

Product Details
General
Application Earth Tension Anchoring
Coating Galvanized, ASTM A-153
EU RoHS Indicator No
Eyenut Style Tripleye
Strength Note Ultimate strength ratings apply to properly installed anchors only. Failure to install within 5 ° of alignment with the guy load may significantly lower strength.
Tensile Strength 36000 lb.
Type Anchor Rod
UPC 096359451457
Dimensions
Dimensions 24.875 in x 5.500 in x 2.000 in
Height 2.000 in
Length 24.875 in
Rod Diameter 1.000 in
Weight 8.000 lb
Width 5.500 in
Logistics
Standard Package 5
