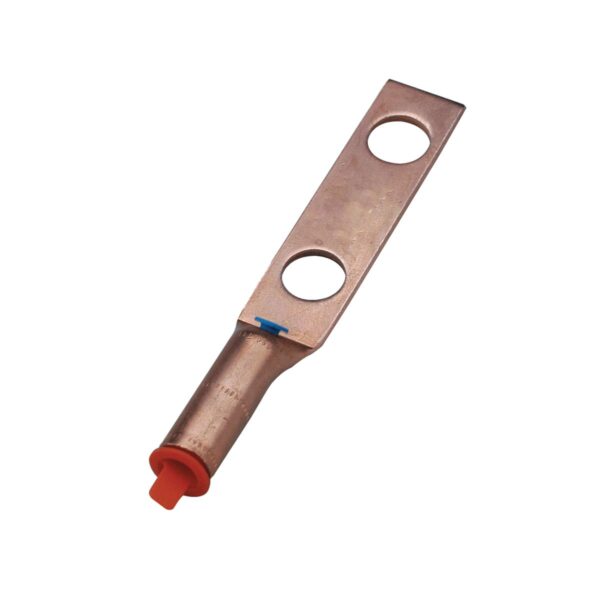

YGA252N Compression Grounding Lug, 1/0 AWG Cu, 2-Hole, 1/2″ Stud, 1-3/4″ Spacing

Description

Product Details
General
Application Irreversible compression HYLUG ground terminal specifically designed for grounding applications
Color Code Pink
Connector Type Terminal
Construction Material – Main Copper
Die Index 12;348
EU RoHS Indicator Yes
Material Copper
Physical Attribute – Number of Crimps Required 2
Plated N
Plating Type Unplated
Sub Brand HYLUG
Trade Name HYLUG™
Type Terminals
UPC 781810220627
UPC 12 Digit 7818102206277
Dimensions
Dimension – B Length fraction 1-1/3 in
Dimension – B Length inch 1.35 in
Dimension – Hole Size inch 0.56 in
Dimension – Hole Size mm 14 mm
Dimension – L Length Overall mm 122 mm
Dimension – Length Overall inch 4.81 in
Dimension – N inch 0.62 in
Dimension – Outside Diameter inch 0.51 in
Dimension – Pad Width inch 0.83 in
Dimension – Strip Length inch 1-7/16
Dimension – Stud Size fraction 1/2
Dimension – Stud Size inch 1/2
Dimension – Width fraction 1/2 in
Dimension – Width inch 0.53 in
Dimensions 4.81 in x 0.83 in x 0.51 in
Height .51 in
Length 4.81 in
Width .83 in
Conductor Related
Conductor – Copper Str Size 1/0 Str.
Conductor – Copper Str Size Range 1/0 AWG
Conductor Type
CU C Solid-Size
CU C Str-Size
Certifications and Compliance
Certification – CSA Approved Yes
Certification – ETL No
Certification – UL Listed Direct Burial Yes
Certification – UL Recognized No
Certification – cULus No
Industry Standard(s)
UL 467,486A
CSA Certified
Direct Burial
Standards – Industry Standards Met UL467
Standards – RoHS Compliance Status CM
UL Listed Yes
Logistics
Carton Quantity 10
Minimum Pack Quantity 1
Pallet Quantity 9600
