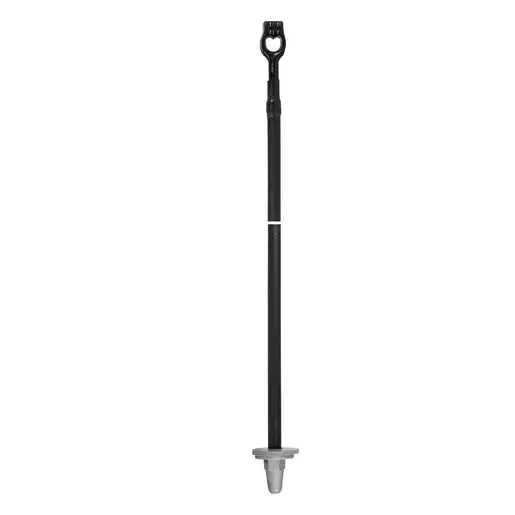

Anchor, Disk Rod, 1-1/4in X 10ft Twineye

Corrosion-Resistant Disk Anchor Protected Rod 1.25″ (31.75 mm) Diameter Rod, 10′ (3048 mm) long with Twineye. Cap Nut and fiber washer is attached.
Forged eye Disk Anchor rods are galvanized, dipped in protective paint and include plastic sleeve, flanged cap nut and fiber washer . The anchor rod’s flanged cast cap nut is large and heavy for greater protection. The heat-shrink sleeve over the galvanized anchor rod helps prevent moisture from going down the rod. The insulating washer is plastic-reinforced thermoset material for better load-bearing properties.

Thimbleye®, Twineye® and Tripleye® drop forged eye distribute pulling stresses uniformly over individual strands of guy wire and keep the guy wire from spreading,kinking, or bending.
Hot dipped galvanized per ASTM A153, Black asphalt paint applied over galvanizing, plastic tube assembled on rod
Includes Fiber Washer and Cap nut
Rods used with round Disk Anchors

Add to wishlist
Category:

Description

Product Details
General
Application Earth Tension Anchoring
Coating Galvanized, ASTM A-153, Black Paint, Plastic Tube
Eyenut Style Twineye
Strength Note Ultimate strength ratings apply to properly installed anchors only. Failure to install within 5 ° of alignment with the guy load may significantly lower strength.
Tensile Strength 58000 lb.
Type Corrosion-Resistant Anchor Parts
UPC 096359637608
Dimensions
Dimensions 120.000 in x 3.000 in x 2.000 in
Height 2.000 in
Length 120.000 in
Rod Diameter 1.250 in
Weight 50.175 lb
Width 3.000 in
Logistics
Standard Package 1
