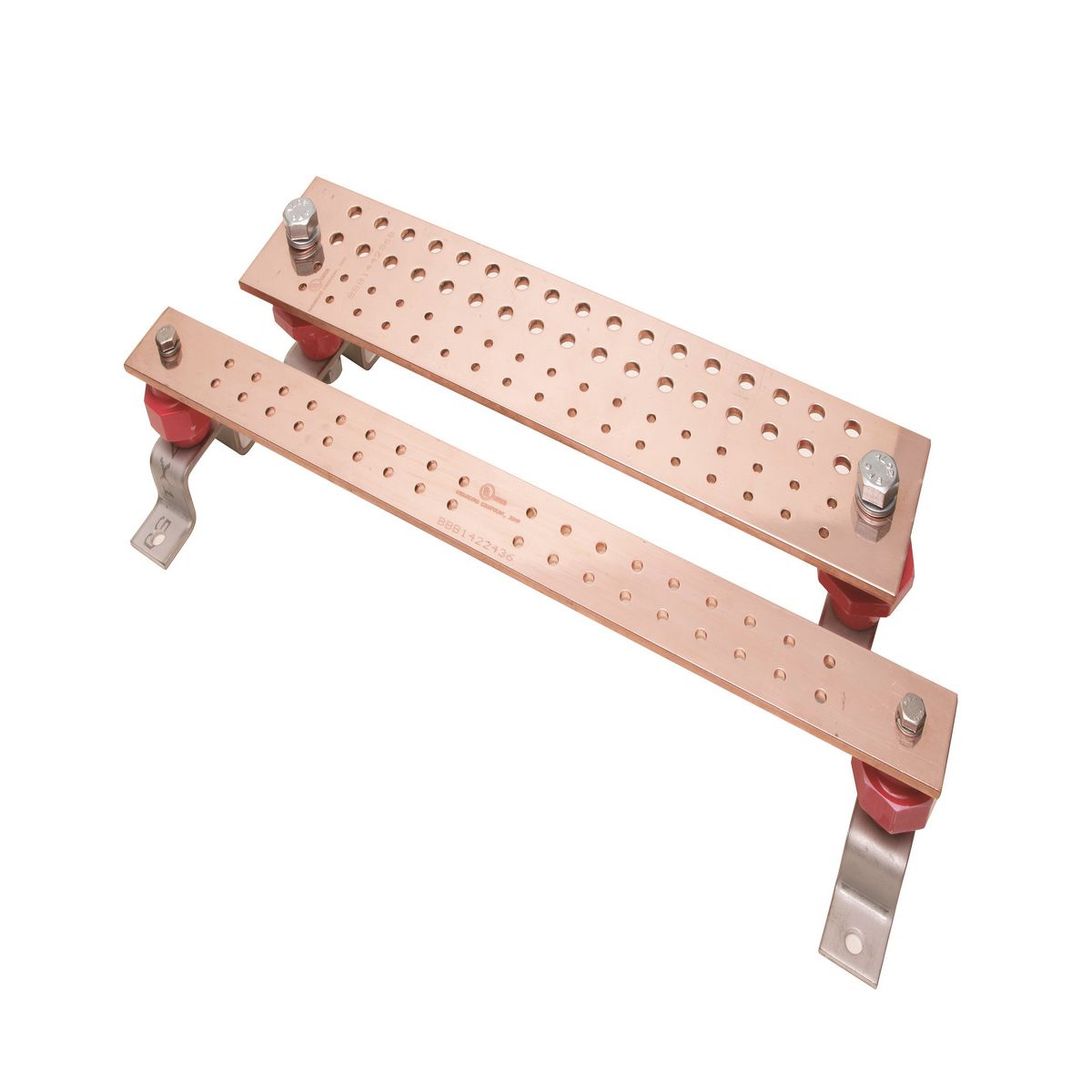

BBB14410C, Bare Copper Busbar, 10" Long, 4" Wide, 22 Holes

Cu Bus Bar, 22 Holes, 10 in L, 4 in W, 1/4 in T,Can be used as a common ground point and power applications as well.
Copper busbar is used in a variety of applications. UL Listed for grounding. Can be used as a common ground point and can also be used in “power” applications as well.
Features: Bare Copper Busbar, UL Listed For Grounding, Available In Many Sizes And Hole Patterns, Brackets And Insulators Included With Most Styles, Also Available In Undrilled, Horizontal And Vertical Versions, Busbar Is Used In A Variety Of Applications: Can Be Used As A Common Ground Point And Power Applications As Well, Dimension K: 6-32, 0.28 IN, Number Of Holes: 22, With Insulator-bracket: Yes, Dimension F1: 1.25 IN, Dimension E2: 1 IN, Dimension E1: 0.75 IN

Add to wishlist
Category:

Description

Product Details
General
Application For Used As A Common Ground Point And Power Applications
EU RoHS Indicator Yes
Material Copper
Physical Attribute – Number of Holes 22
Sub Brand BUS BAR
Type BBB
UPC 781810489338
UPC 12 Digit 7818104893388
Dimensions
Dimension – Bar Length inch 10 in
Dimension – Bar Length mm 254 mm
Dimension – Bar Thickness inch 0.25 in
Dimension – Bar Thickness mm 6 mm
Dimension – Bar Width inch 4 in
Dimension – Bar Width mm 102 mm
Dimension – Hole Size inch 0.44 in
Dimension – Hole Size mm 11 mm
Dimension – Width fraction 4 in
Dimension – Width inch 4.00 in
Certifications and Compliance
Certification – CSA Approved No
Certification – UL Recognized No
Certification – cULus Yes
Standards – RoHS Compliance Status CM
Logistics
Carton Quantity 1
Minimum Pack Quantity 1
Pallet Quantity 90
